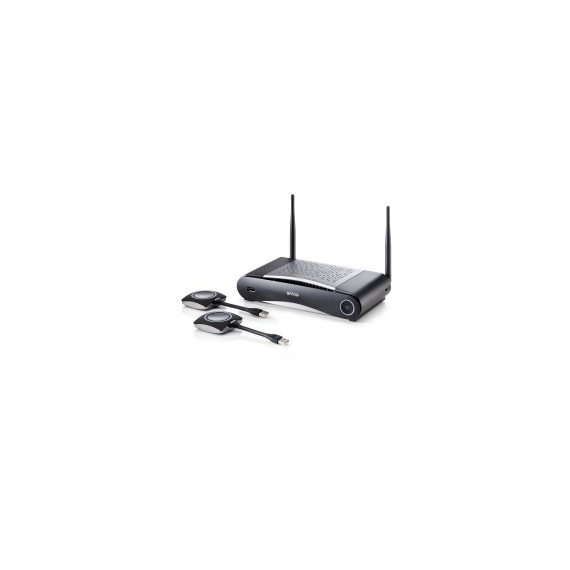

Barco
產品特色
- 無線連接到中央屏幕
- 最多2位用戶的資料畫面在螢幕上顯示
- 從筆電，平板電腦或智慧型手機分享資料
- 增強的安全功能
- 可遠端中央管理設備
- 有兩個簡報分享器
| General specifications | |
|---|---|
| Operating system | Windows 7/8/8.1/10 32 & 64 bit Mac OSX 10.10/10.11/10.12 (Sierra) Android v5 & v6 (ClickShare app) iOS 8, 9 & 10 (ClickShare app) |
| Video outputs | 1x HDMI |
| Frame rate | Up to 30 fps |
| Output resolution | 1920x1200 |
| Noise Level | Fanless |
| Number of sources simultaneous on screen | 2 |
| Number of simultaneous connections | 16 |
| Audio | Via HDMI, analog via Audio Jack 3.5mm, S/PDIF |
| iPad, iPhone and Android compatibility | Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app |
| Extended desktop | Available (depending on the driver of your graphics card) |
| Authentication protocol | WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X in network integration mode |
| Wireless transmission protocol | IEEE 802.11 a/g/n |
| Reach | Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit |
| Frequency band | 2.4 GHZ and 5 GHz |
| Connections | 1x Ethernet LAN 2x (back) + 1x (front) USB Audio analog line out on mini jack socket (3.5mm), digital S/PDIF |
| Temperature range | Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Anti-theft system | Kensington lock |
| Certifications | FCC/CE |
| Warranty | 3 years standard Possible to extend to 5 years |
| ClickShare Base Unit dimensions | |
| Dimensions (HxWxD) | 205mm x 115mm x 45mm (excl. antennas) / 8.1” x 4.5” x 1.8” 205mm x 150mm x 135mm (incl. antennas) / 8.1" x 5.9" x 5.3" |
| Power supply | Standard 110/220 V AC plug or Power over Ethernet (PoE Plus) |
| Power consumption | Operation: 6W (typical) / 18W (max) Standby: 2.6W (ECO standby) / 0.4W (Deep standby) |
| Weight | 600g / 1.32lbs |
