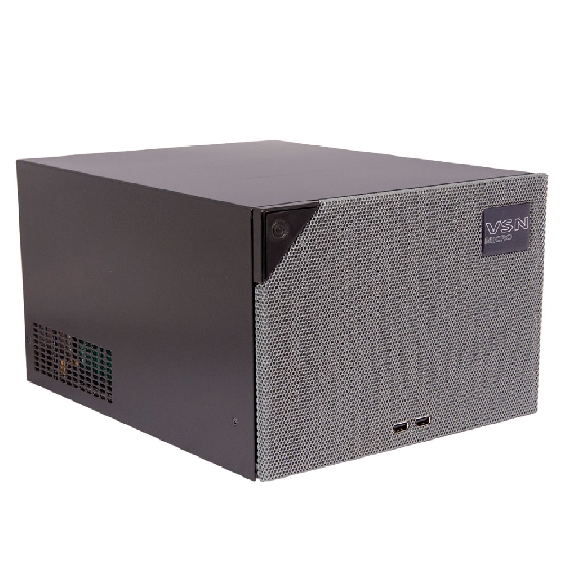

Datapath VSNMicro 600
VSNMicro 600 平台包含一個高性能主機板，連接到 Datapath 的 Express6 PCIe 背板。背板包含六個半長 PCIe 插槽，可與 Datapath 的卡片系列搭配使用。
線上諮詢
產品特色
| Motherboard | Industrial motherboard, 3 x DisplayPort control screen Outputs: 4 x USB 3.0 ports, 4 x USB 2.0 ports |
| Processor options | Standard: Intel Core i5 - 6M Cache, up to 3.6 GHz Optional upgrade: Intel Core i7 - 8M Cache, up to 4 GHz |
| Memory options | Standard: 16GB Dual Channel DDR4 |
| Ethernet | 2 x Intel Gigabit Ethernet port |
| Power supply | ATX 500 watts 100-240v RPSU 500 watts 100-240v |
| Backplane | Datapath Express6: Six PCIe Gen3 slots x8 offering up to 8 GB of bi-directional data transfer |
| Hard drive options | Standard: 240 GB SSD Optional upgrade: 480 GB SSD Customer may upgrade to dual drives with RAID. Please confirm at time of order |
| Operating system | Windows 10 LTSC Windows Server 2022 (Optional. Contact Datapath Sales for more information) |
| Operating temperature | 0 to 35 °C (32 to 95 °F) |
| Storage temperature | -20 to 70 °C (-4 to 158 °F) |
| Relative humidity | 5% to 90% non-condensing |
| Length | 380mm |
| Height | 176mm |
| Width | 265mm |
| Weight | 10 - 15kg (shipped 15 - 20kg) |
| Compliance | FCC / CE / RoHS |
